SHARPENING MACHINE FOR CUTTERS

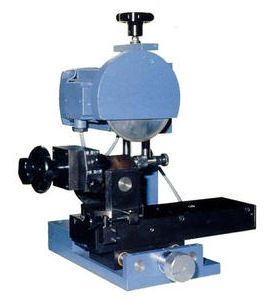

This SAGITTA machine is used to sharpen tapered or cylindrical cutters with hard metal teeth up to a diameter of 100 mm and a height of 100 mm.

The machine is equipped with:

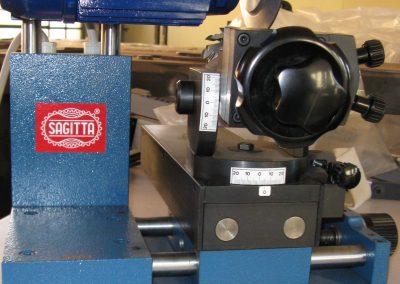

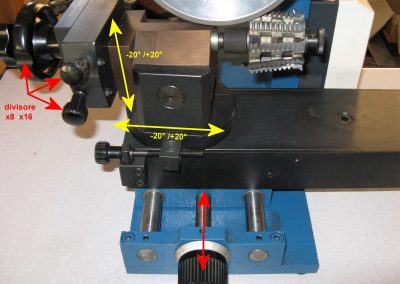

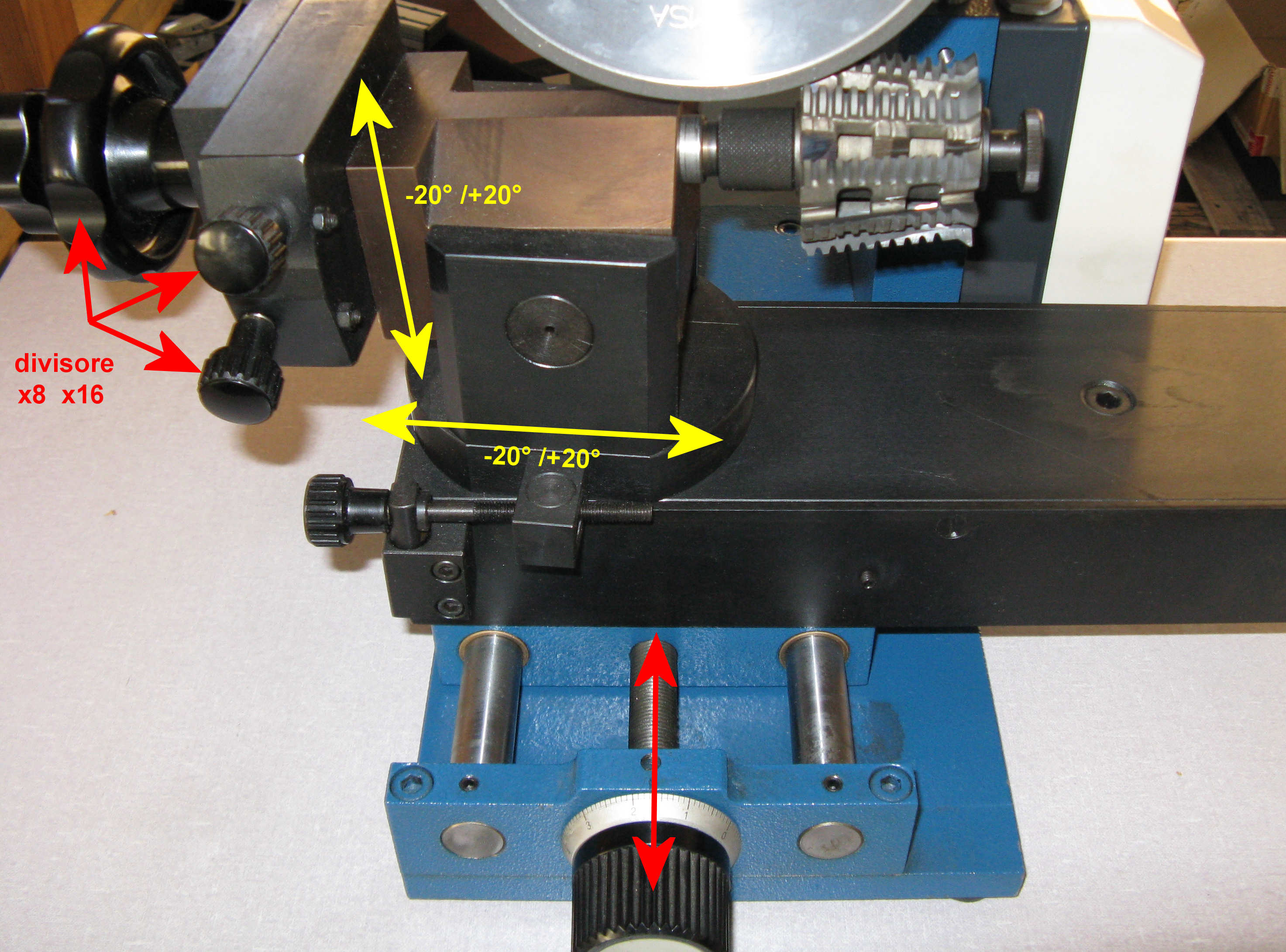

– cutter holder support adjustable vertically and horizontally which allows to sharpen any type of cutter
– two dividers from 9 to 16 divisions (or other divisions on request)

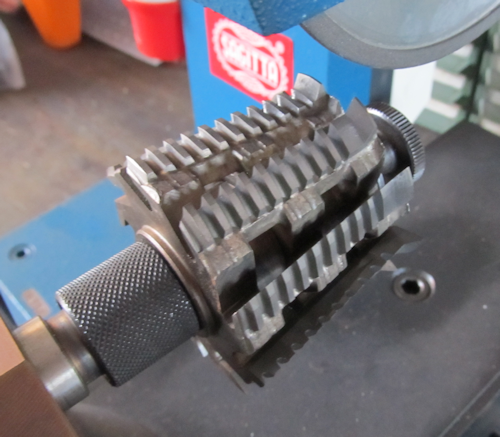

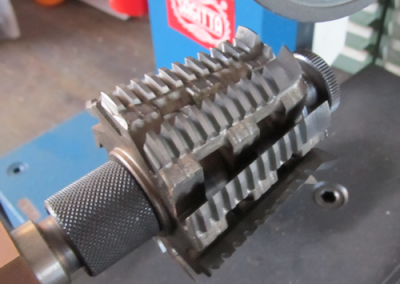

– milling cutter shaft with conical connection
The cutter holder shaft is easily interchangeable with others having different attachments, therefore it is possible to equip the machine with different shafts.

Technical features:
Diamond wheel diameter mm. 150
Maximum absorbed power 0.4 kW
Three-phase power supply 400 Volt 50/60 Hz

Machine dimensions cm. 40 x 48 x 51 h.
Machine weight Kg. 60

Technical features are indicative and non-binding
